Reliable Truck-Mounted Cranes: Components & Precision Workmanship

Many buyers of truck-mounted cranes only compare tonnage and price, yet they often overlook a critical factor. A crane hoists heavy loads thousands of pounds; every lifting, telescoping and slewing operation puts the overall precision and manufacturing craftsmanship to the test.

If structural components suffer machining deviations, welding strength is inadequate, or hydraulic fittings vary wildly in quality, minor issues such as jib telescoping jams and load drift may occur. Worse still, structural deformation and component cracking can arise, creating severe safety hazards.

A reliable crane is never a simple assembly of steel plates and spare parts. It is built through rigorous standards across the entire production chain: plate cutting, bending and machining, robotic welding, hydraulic system selection, and surface coating.

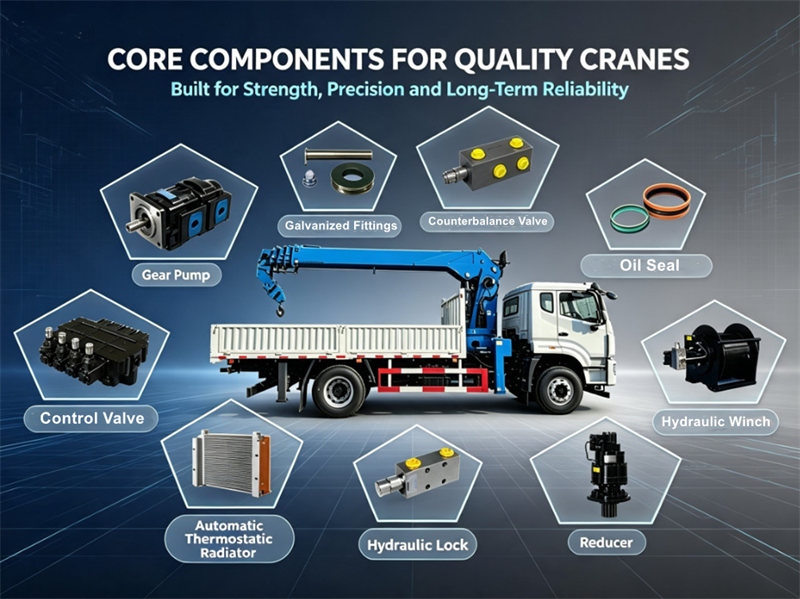

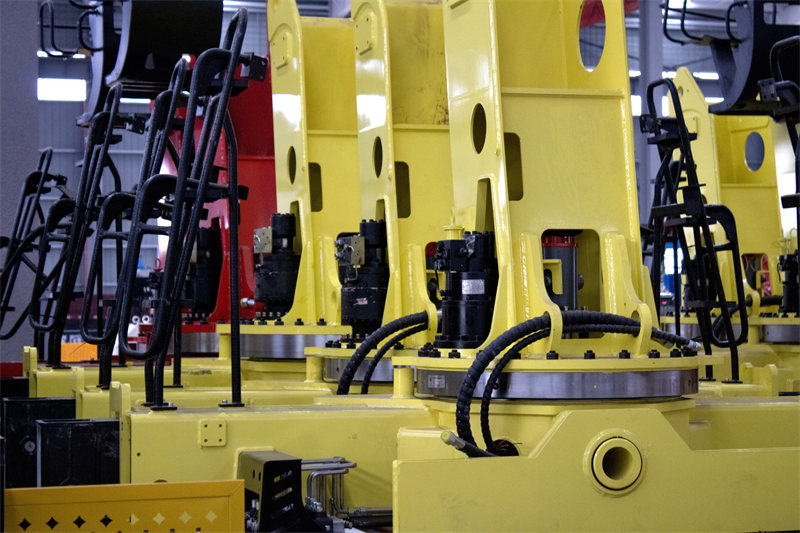

⚙ Sourcing of Core Crane Components:

▣ Gear Pump:

We adopt hydraulic gear pumps from well-known Chinese brands. This double cast iron gear pump features side plate construction, proprietary floating axial clearance compensation and radial balance technology, plus DU self-lubricating bushings. It delivers high volumetric efficiency, high working pressure, strong vibration resistance, excellent high-temperature tolerance and extended service life.

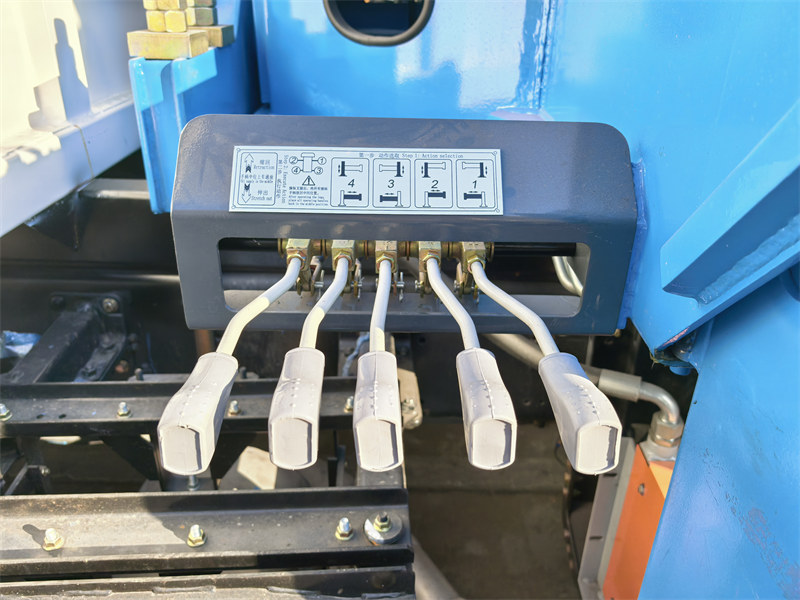

▣ Control Valve:

Supplied by a reputable Chinese manufacturer specializing in motion controllers, drive controls, hydraulic components and metal material research & application. It ensures precise motion control and stable, reliable crane performance during prolonged operation, and dynamically adjusts output according to load demands.

▣ Hydraulic Lock:

Sourced from one of China’s leading manufacturers of hydraulic components and machinery. As a core strategic supplier for major domestic enterprises including XCMG and Lovol, the supplier has obtained ISO9001, ISO14001, OHSAS18001 and EU CE certifications, providing complete hydraulic power system solutions.

▣ Hydraulic Winch:

1. The drum adopts welded construction, offering high strength and flexible adaptability to diverse customer requirements.

2. Brake springs use imported German disc springs with advanced manufacturing processes.

3. Heat treatment adopts austempering (bainite quenching) for uniform microstructure and consistent performance. The springs feature high strength, good toughness and outstanding crack resistance; the internal bainite structure delivers longer service life. Precision blanking equipment ensures superior dimensional accuracy and product quality.

4. Gears are made of 20CrMnTi steel treated via carbonitriding quenching for high strength and good toughness.Seals for hydraulic brakes are supplied by Hansheng, ensuring reliable performance and long service life. It is equipped with NGB planetary reduction featuring equal load sharing and high load capacity.

▣ Galvanized Fittings:

Crane auxiliary fittings are upgraded to galvanized parts, greatly enhancing anti-corrosion and rust resistance and extending component service life. Galvanized surfaces feature uniform, bright and clean finishes without rust patches or dripping stains, improving the overall appearance of the crane.

▣ Imported Oil Seals:

Cylinders adopt advanced sealing technology and high-performance Hallite oil seals imported from the UK, providing excellent sealing effect, stable operation and long service life.

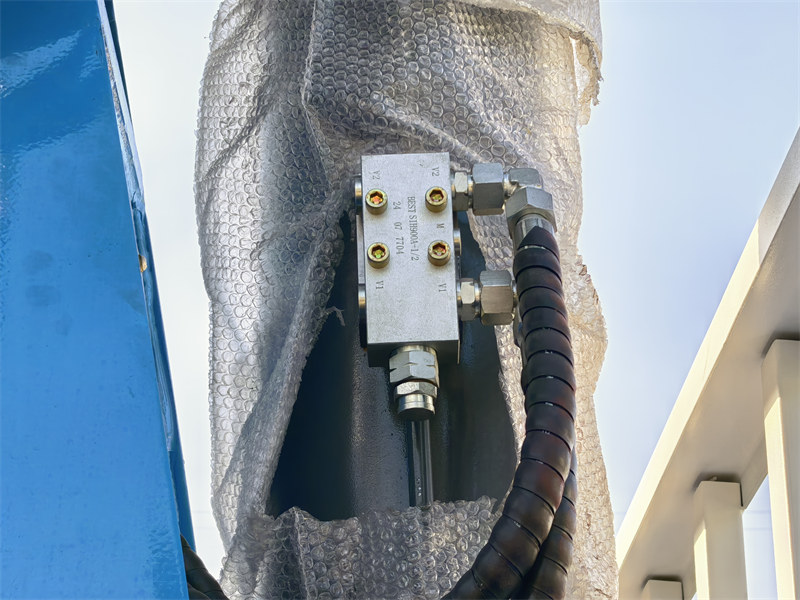

▣ Counterbalance Valve:

It achieves effective micro-leakage locking during heavy-load boom holding and suspended cargo lifting. It prevents slow sinking and unintended boom drift of the main and secondary booms. The boom lifts and lowers smoothly without jerking or shaking, with low risk of internal leakage, oil leakage and erratic movement speed.

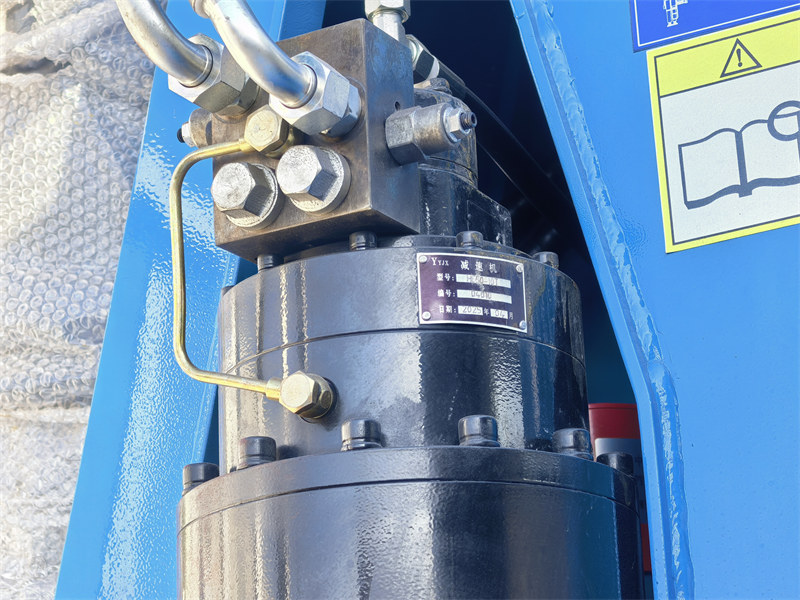

▣ Reducer:

1.Ring gear housings and planet carriers are manufactured by precision forging for dense microstructure and high strength.

2.Brake springs also adopt imported disc springs.

3.Gears are made of 20CrMnTi steel with carbonitriding quenching treatment for high strength and good toughness. Hydraulic brake seals are Hansheng products with reliable performance and long service life.

4.NGB planetary reduction with equal load sharing is applied to realize high load-bearing capacity.

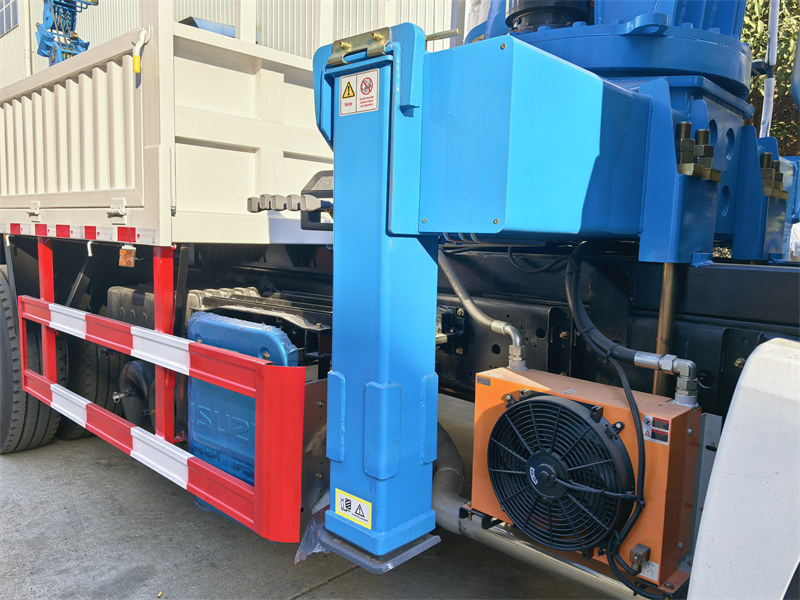

▣ Automatic Thermostatic Radiator:

1.Large-section automatic thermostatic radiator with automatic temperature control, eliminating frequent manual switching.

2.The finned high-efficiency heat exchange structure ensures sufficient heat dissipation of hydraulic oil and prevents thermal oxidation and deterioration of hydraulic fluid.

3.It extends the oil change interval, avoids failures such as seal aging, hydraulic valve sticking and pump/motor wear caused by excessive oil temperature, and improves the service life and operational reliability of the whole equipment.

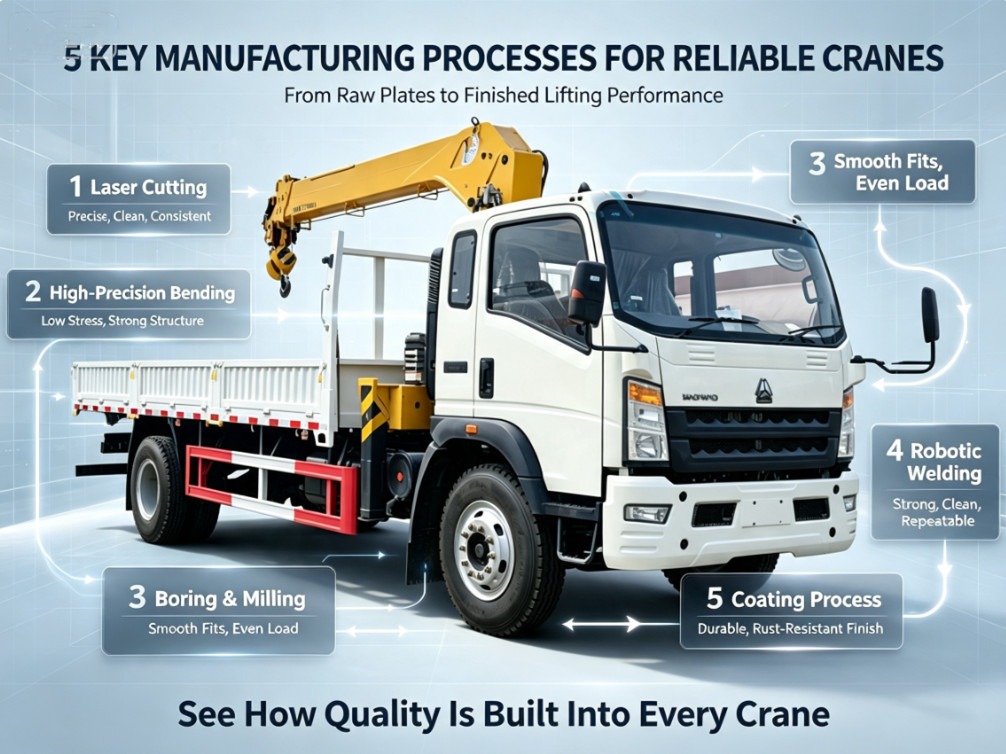

⚙ Five Critical Manufacturing Processes for Premium Truck-Mounted Cranes：

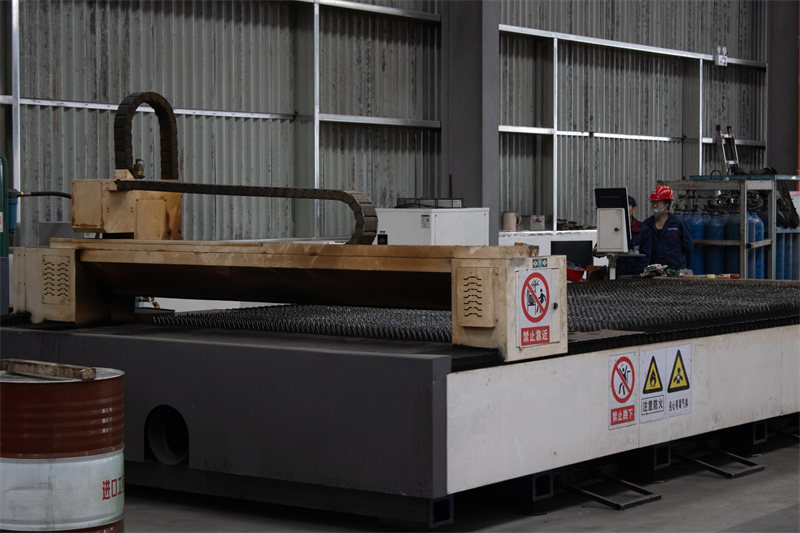

▣ Laser Cutting：

♦ Covers all thin and medium-thick plate components for truck-mounted cranes.

♦ One machine handles multiple applications and eliminates secondary machining.

♦ It processes complex special shapes, small round holes, sharp corners, hollow-out patterns and intricate curved profiles.

♦ Cut edges are vertical and smooth, free of dross and burrs. Plates remain distortion-free; thin sheets, thin stainless steel and aluminum panels stay flat without warping or twisting after cutting.

♦ Cut plate edges resist discoloration and rusting.

♦ Clean laser-cut cross-sections minimize oxidation, facilitating subsequent painting, bending and welding operations.

♦ Excellent dimensional consistency: hundreds or thousands of mass-produced parts feature identical dimensions and contours without human error.

♦ Perfectly matched for robotic welding and standardized assembly lines to form a closed-loop precision system.

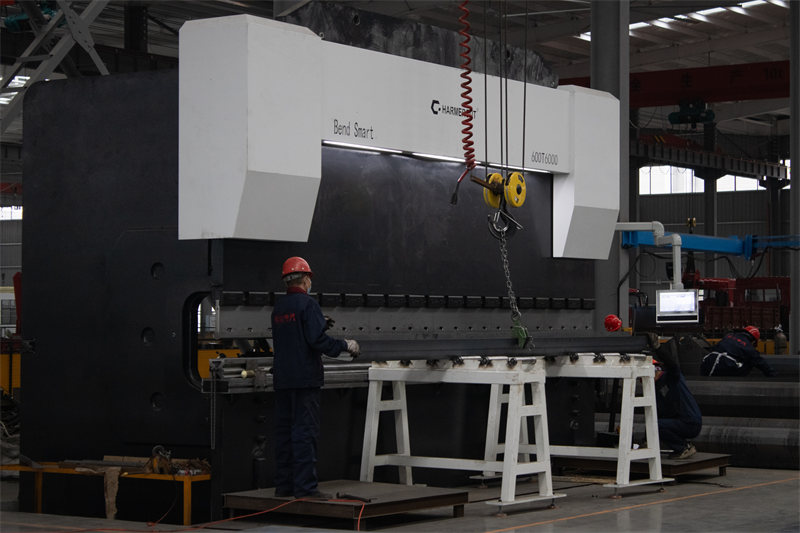

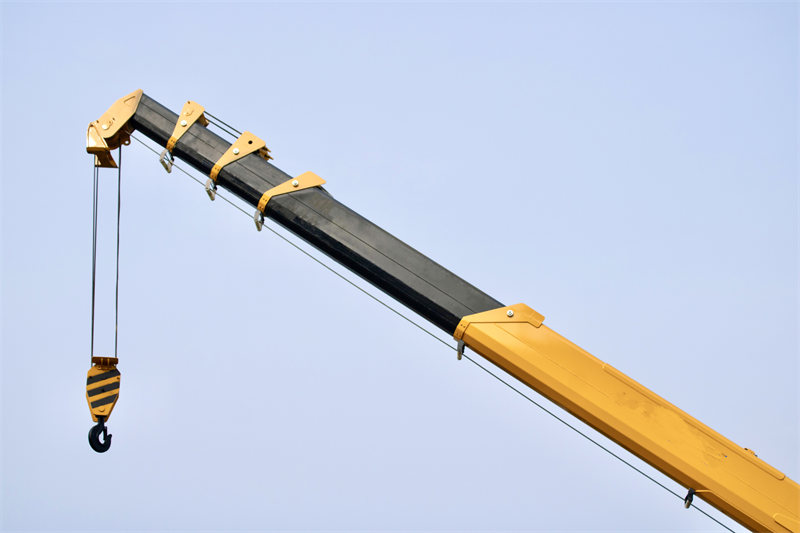

▣ High-Precision Bending：

♦ High-precision bending delivers flat panels with low residual stress, improving structural strength and preventing deformation and cracking of load-bearing boom components on truck-mounted cranes.

♦ Boom tube tolerance is controlled within ±1 mm, resulting in minimal clearance for smoother telescoping and reduced jitter or sticking.

♦ High accuracy of boom tubes allows effective reduction of design reserved tolerances thanks to equipment upgrades.

♦ Tolerance of each boom section can be reduced by 4 mm compared to ordinary processing, enabling much smoother boom extension and retraction.

♦ Tighter fitting between boom sections creates stronger interlocking force under load lifting. Optimizes coaxiality, symmetry and flatness; bent surfaces are straight and neat with higher concentricity after boring.

♦ Avoids offset pin shafts and holes, uneven stress distribution and premature cracking caused by reference datum deviation.

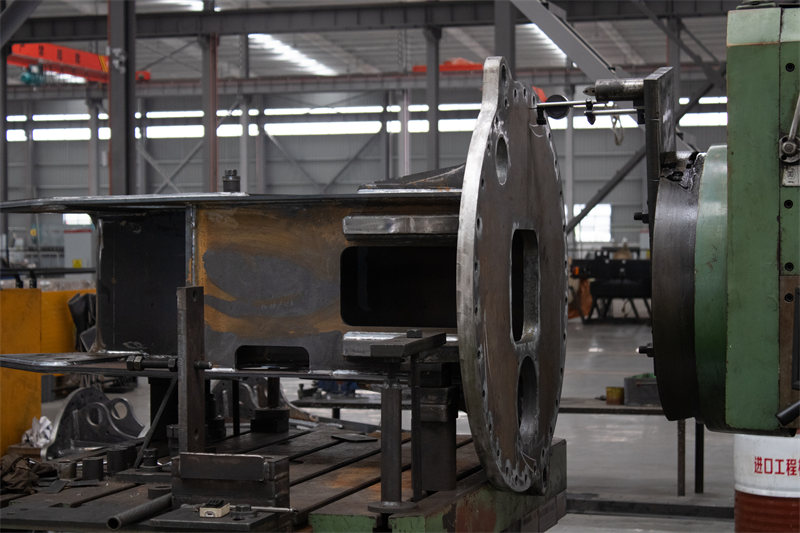

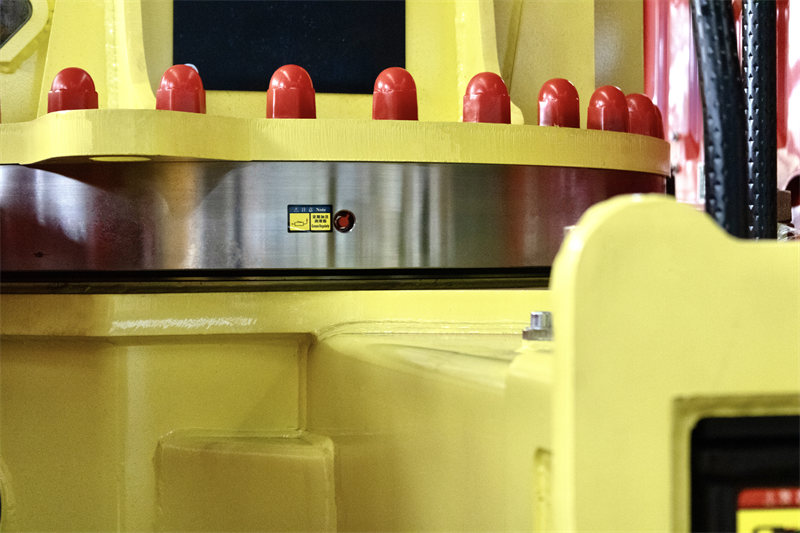

▣ Boring & Milling：

Boring: Finishes circular holes to guarantee precise aperture, superior roundness, accurate concentricity and smooth hole walls.

Milling: Flattens and polishes workpiece surfaces to ensure outstanding flatness.

♦ Work surfaces feature minimal height deviation and high concentricity.

♦ Holes are accurately sized with good roundness and no elliptical distortion.

♦ Hole-to-surface perpendicularity and hole spacing are strictly controlled for tight, seamless assembly.

♦ Bearings, shafts, pin shafts and flanges fit smoothly without wobbling; rotation is steady, free of eccentricity and abnormal wear.

♦ Uniform force distribution creates tight contact between mating surfaces, preventing loosening and cracking.

♦ Uniform dimensions across all workpieces support interchangeability of spare parts.

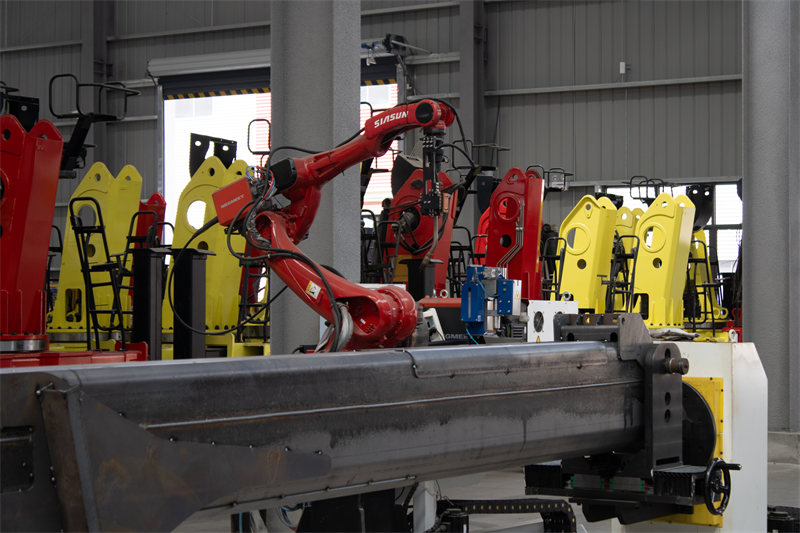

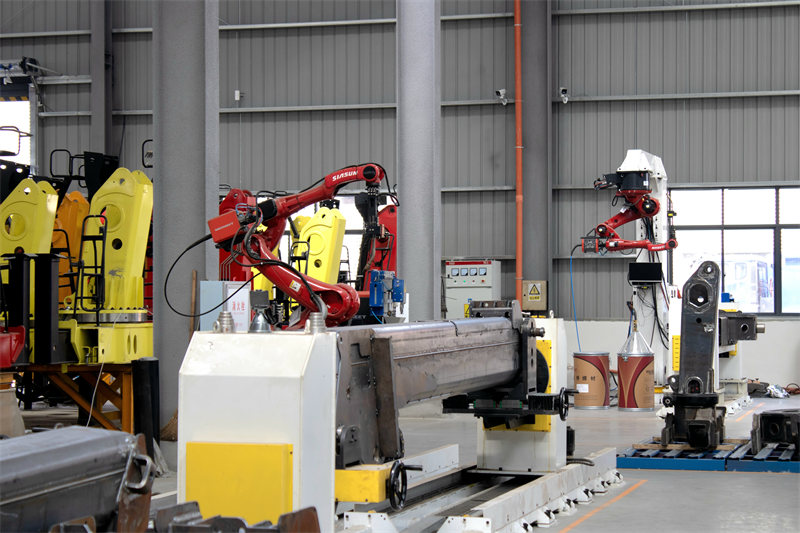

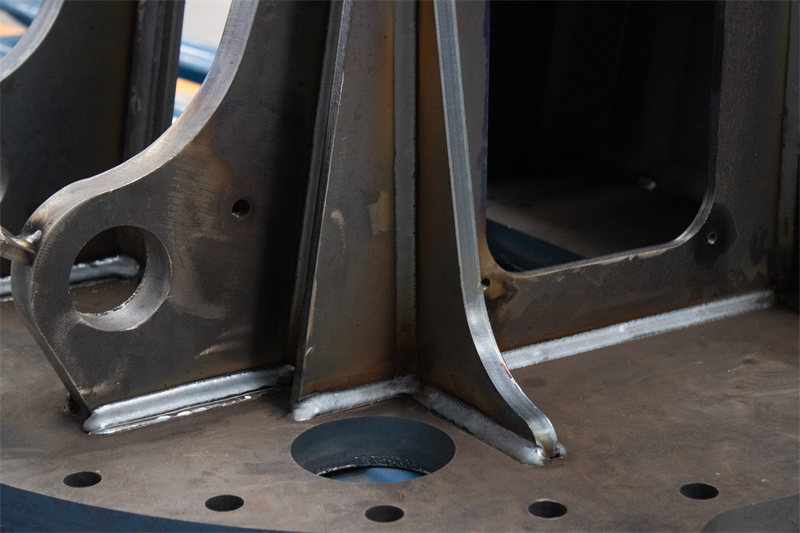

▣ Robotic Welding：

♦ Uniform, aesthetic weld formation. Constant robotic travel path ensures consistent weld width and regular weld ripples.

♦ No overlap, undercut or welding spatter. Extensive post-weld grinding and slag chipping are unnecessary for a clean appearance.

♦ Consistent welding spots prevent wrinkling and deformation. Stable heat input creates uniform heating, so workpieces rarely deform or collapse.

♦ Long welds and circular welds achieve superior finish with continuous, gap-free seams and smooth joint transitions.

♦ Uniform shielding gas coverage reduces internal defects and enhances tensile strength and fatigue resistance.

♦ Controllable heat input and fixed welding rhythm deliver even internal stress distribution, resisting weld cracking under subsequent bending, load-bearing and vibration conditions.

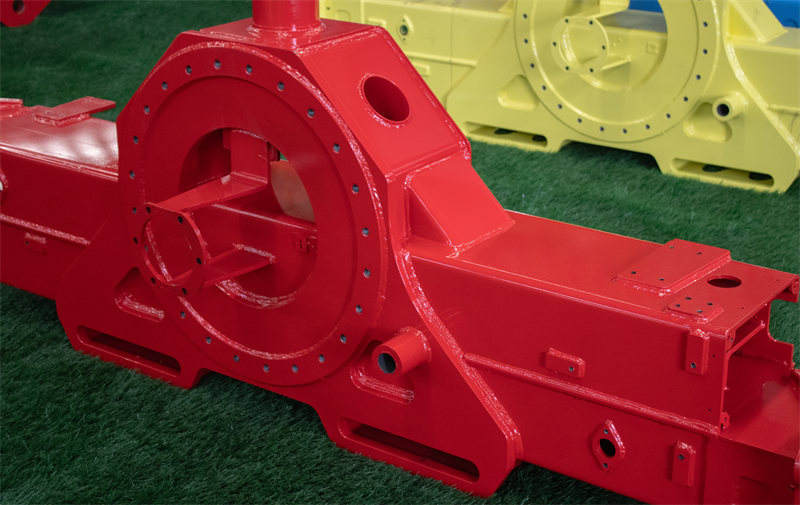

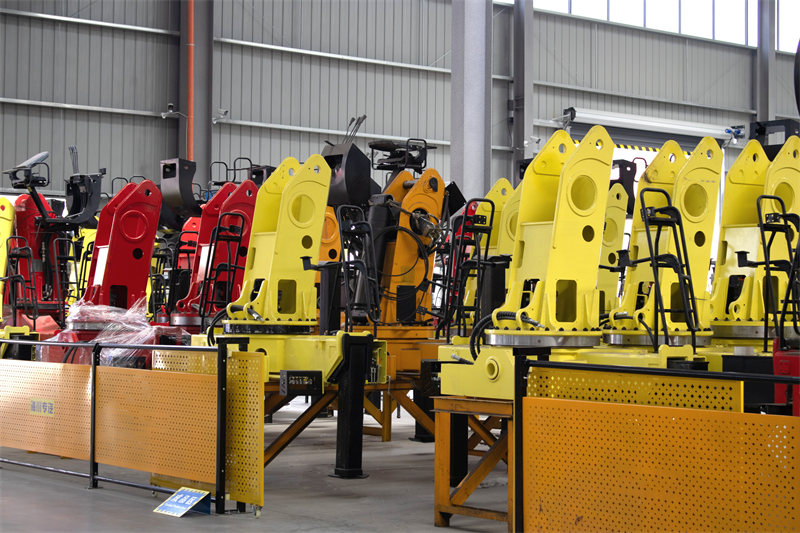

▣ Crane Coating Process：

♦ Shot Blasting

Shot blasting removes scale and contaminants on workpiece surfaces to improve appearance. Steel shot blasting creates a textured surface to boost powder coating adhesion. Advantages: Effectively relieves welding stress, lowers risk of fatigue fracture and extends component service life.

♦ Degreasing & Washing Process

Process flow: Pre-degreasing → Degreasing → Pre-rinsing → Rinsing → Air Blowing → Drying → Forced Cooling

Degreasing: Removes grease and oil contamination from workpiece surfaces.

Washing: Uses warm water above 40°C to flush all grease and stains from workpieces.

After washing, 360° dead-angle-free air blowing is applied, followed by drying at 120°C and forced cooling to bring workpiece temperature down to roughly 50°C.

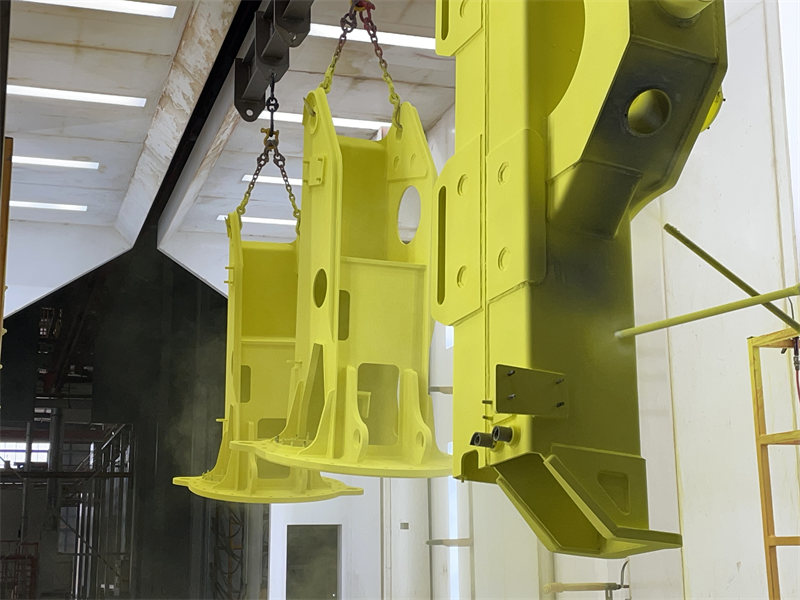

♦ Powder Coating

Workpieces are conveyed to laser scanning stations for contour scanning, then transferred to the powder coating booth. Adopting multi-axis linkage technology, more than 60 imported spray guns inside the booth form uniform coating layers on all workpiece surfaces without blind spots.

♦ Curing & Baking

Workpieces are transported to the final baking station. Imported infrared heating equipment (IfraSol) enables uniform heating from surface to core for rapid powder melting. The oven adopts a two-stage baking process: preheating at 120°C and main heating at 240°C for 15–20 minutes, allowing powder melting, leveling and curing to achieve perfect surface finish.
