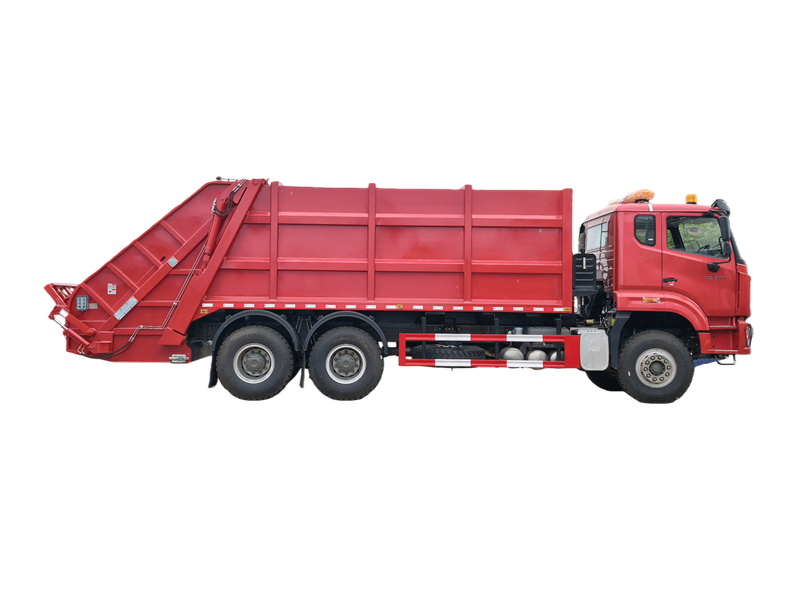

HOWO NX 20CBM rear loader for Tanzania

HOWO NX 20CBM rear loader for Tanzania

The HOWO 20CBM Rear Load Garbage Truck is specially designed for African countries. It adopts the HOWO NX 6×4 chassis and is equipped with a 371 HP engine, delivering powerful and reliable performance. The upper body is made of T420 special steel, achieving a compression ratio of up to 1:3. The truck features a Siemens PLC control system, ensuring smooth and efficient loading and unloading. Key components are wear-resistant and leak-proof, making it suitable for long-distance transport and continuous heavy-duty operation.

  • ظرفیت کاری :

    20CBM
  • نوع کابین :

    HOWO NX cabin, with sleeper
  • ابعاد (میلی‌متر) :

    9600×2550×3400mm
  • سیستم درایو :

    6x4
  • فاصله بین دو محور (میلی‌متر) :

    4600+1350 mm
  • مخصوص موتور :

    WD615.47, 371HP, Euro 2
  • جعبه دنده :

    HW19710, manual 10F and 2R
  • محور جلو (کیلوگرم) :

    9500
  • محور عقب (کیلوگرم) :

    16000*2
  • نکته :

    6×6, left hand drive is optional
محصولات جدید

The HOWO 20CBM Refuse Compactor Truck is a rear-loading type sanitation vehicle tailored for the African market. It is built on the HOWO NX 6×4 chassis, powered by a WD615.47 371 HP engine and an HW19710 ten-speed transmission, providing ample power, good climbing ability, and excellent passability. The compactor body is welded with T420 special steel, offering a robust and durable structure with a compression ratio of up to 1:3. Equipped with a Siemens PLC control system, the loading and unloading actions are smooth, making it ideal for long-distance transport and continuous operation.

The tailgate slide and curved plate of this HOWO waste compactor truck are made of high-strength wear-resistant materials. Leakage ports at the bottom of the loader allow wastewater to flow directly into the storage tank, preventing secondary pollution. The rear is equipped with a lifting mechanism for dual 240L trash bins, with a single loading cycle time of no more than 25 seconds and an unloading cycle time of approximately 110 seconds. The operation supports both automatic and manual modes, adapting well to unpaved roads and landfill working conditions typical in Africa.

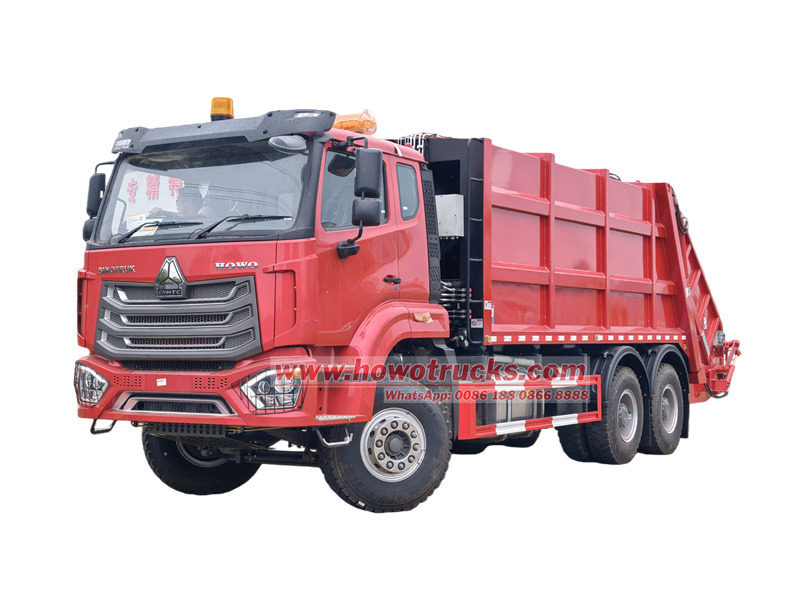

HOWO 20cbm rear loader truck




*SINOTRUK HOWO Heavy Duty Garbage Compactor Truck
HOWO NX 20CBM Heavy Duty Rear Loader*
-----------------------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.





✦Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS Group
Features:

Chassis: HOWO NX 6x4 heavy-duty chassis, 371HP diesel engine, 10-speed gearbox

Compactor Volume: Effective compactor body volume up to 20CBM

Compactor material: Made of 5mm thick T420 special steel

Compression ratio: High compression ratio, the density of municipal solid waste can reach 700-800 kg/m³ after compression

Operation Scope: Suitable for municipal solid waste collection, commercial refuse compaction, and urban sanitation operations

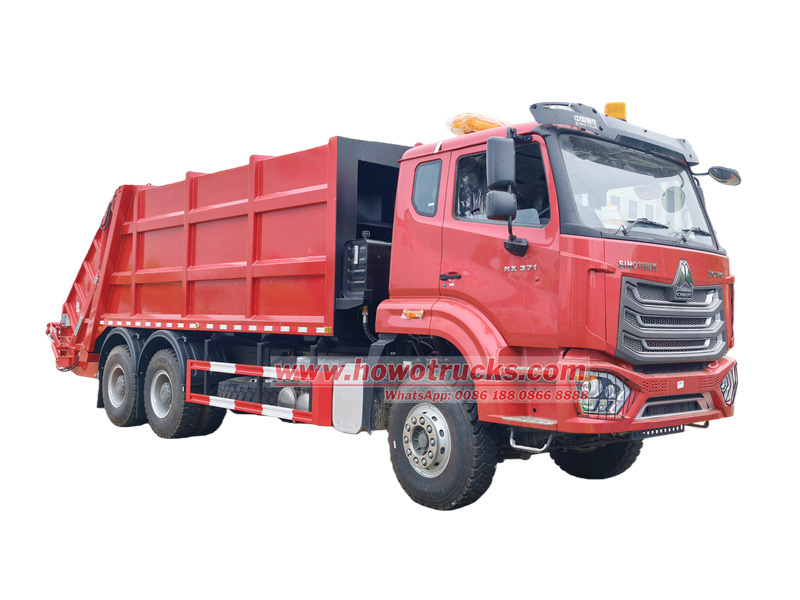

HOWO 20cbm rear loader garbage truck

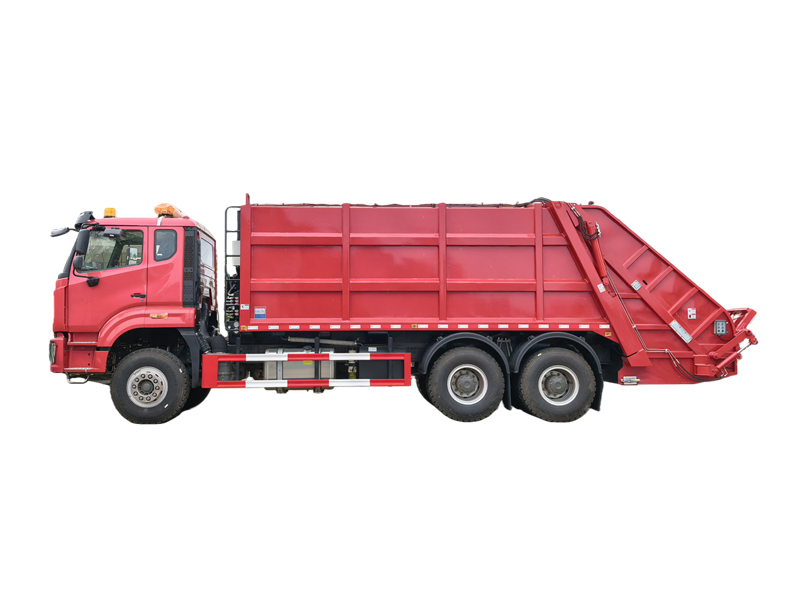

HOWO 20CBM garbage compactor truck


✦Ⅱ.Product Parameter for HOWO 20CBM Rear Loader:


HOWO 20CBM rear loading garbage compactor truck specifications

Product Name

Compactor Garbage Truck

Model

CS5250ZYS

Chassis

HOWO NX

Driving Type

6*4

Gross Weight

25000kg

Curb Weight

15000kg

Dimension

9600×2550×3400mm

Wheelbase

4600+1350mm

Front Axle Loading Capacity

9500kg

Rear Axle Loading Capacity

32000kg

Approach angle

19c°

Departure angle

11°

Front Suspension

1430mm

Rear Suspension

2400mm

Tire

12.00R20

Max Speed

89(Km/h)

Engine parameters:

Model

WD615.47

Horse Power

371HP (273kW)

Displacement

9.726L

Emission Standard

Euro 2

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Rated speed

2200 rpm

Max torque

1500 N.m

Max. torque speed

1100-1600rpm

Gear Box

Model

HW19710

Gears

10-speed forward and 2 reverse

Superstructure Parameter

Compactor Volume

20m3

Material

T420(Special Steel)

Compression Ratio

1:3.0

Volume of the tailgate

2 m³

Loading cycle time

≤25 s

Tailgate lifting time

≤15 s

Unloading cycle time

≤110 s

Bin lifter cycle time

≤10 s

Control method

Automatic+Manual

Maximum pressure of hydraulic system

20 MPa

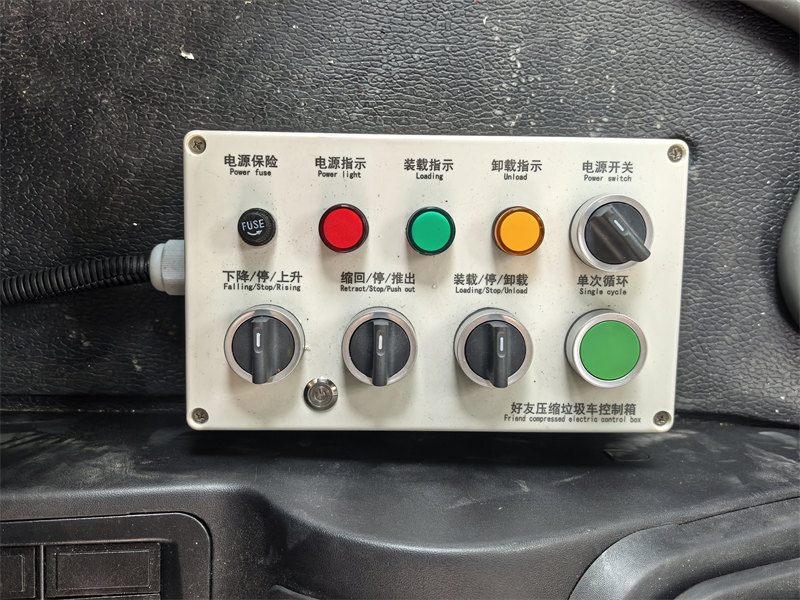

Control System

Siemens PLC

Bin lifter type

Suitable for 2 units 240L garbage bin

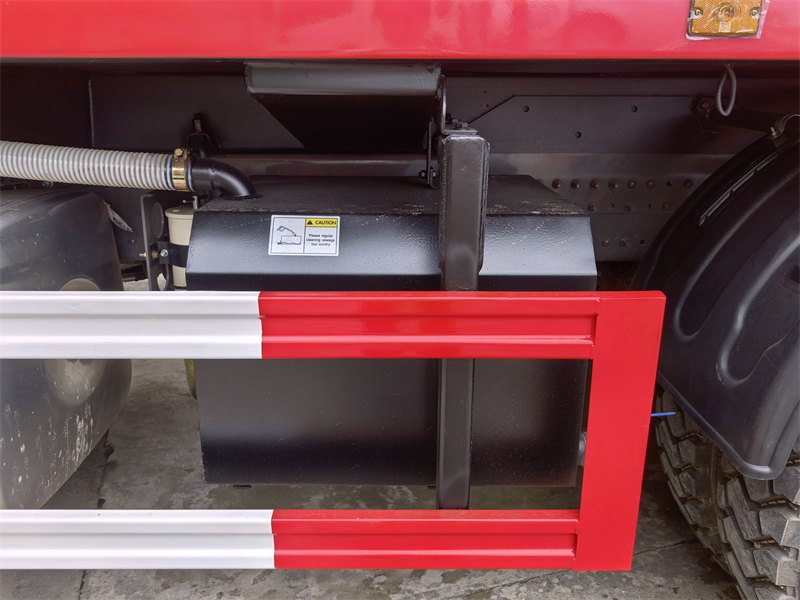

HOWO NX 20CBM refuse compactor truck



✦Ⅲ.Howo 20CBM Refuse Compactor Truck Advantages:

HOWO NX truck mounted garbage compactor

1. Powerful and Reliable Chassis: Equipped with a WD615.47 371 HP engine and HW19710 ten-speed transmission, it offers ample power reserve, strong climbing ability, and excellent passability on complex road conditions, suitable for long-distance transport and continuous heavy-duty operation.
2. Durable and Robust Body: The compactor body is welded with T420 special steel and reinforced with a strengthened beam structure, providing high load capacity, uniform stress distribution, and resistance to deformation, making it adaptable to harsh working conditions and long-distance transport in regions like Africa.
3. High Compression Efficiency: With a compression ratio of up to 1:3, it effectively increases single-load capacity, reduces transport frequency, and lowers operating costs.
4. Well-Designed Sealing System: Adjustable sealing strips are installed on both sides and the top of the push shovel to prevent leakage of garbage and wastewater.
5. Wear-Resistant Key Components: The tailgate slide and lower curved plate are cold-formed using high-strength wear-resistant materials, extending the equipment's service life in heavy-load, high-frequency operating environments.
6. High Operational Efficiency and Flexible Control: Single loading cycle ≤25 seconds, unloading cycle ≤110 seconds, and the bin lifting mechanism cycle ≤10 seconds. The Siemens PLC control system supports both automatic and manual modes, ensuring convenient and reliable operation.








✦Ⅳ.HOWO rear loader truck structure

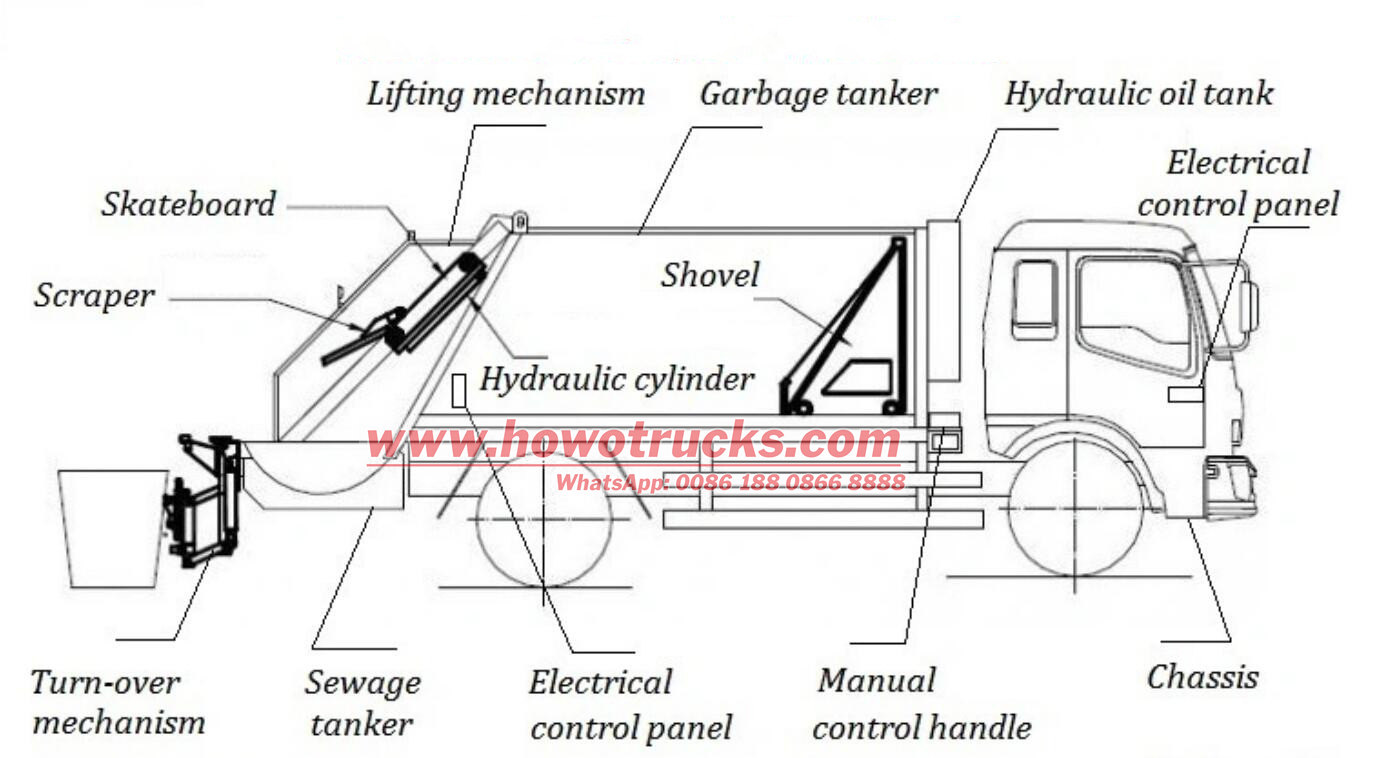

HOWO rear loader refuse truck structure

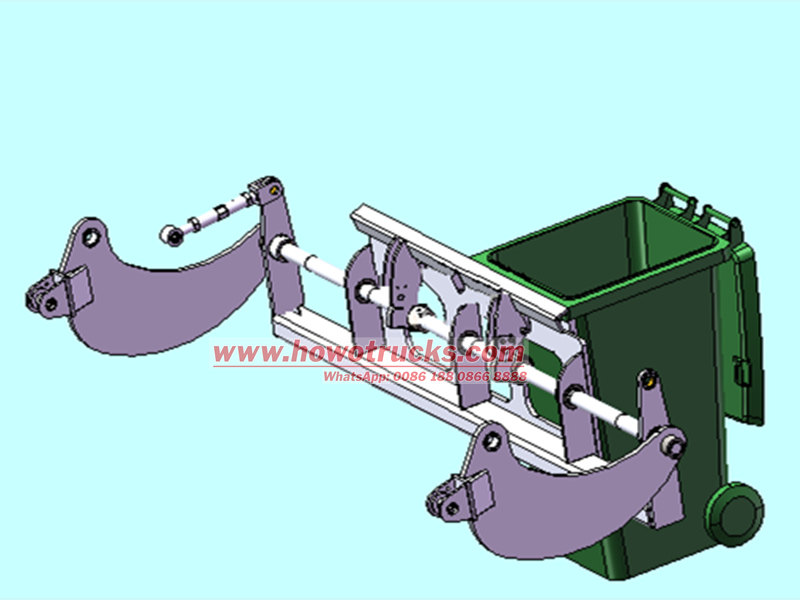

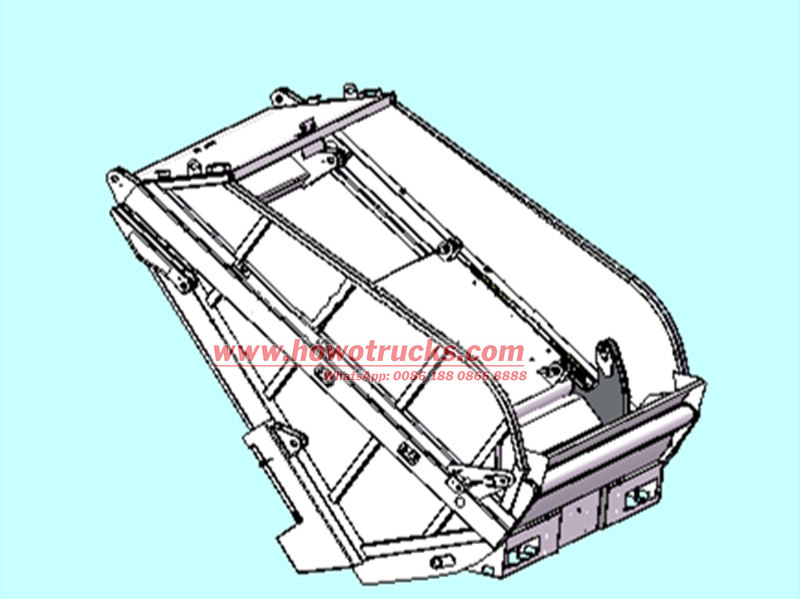

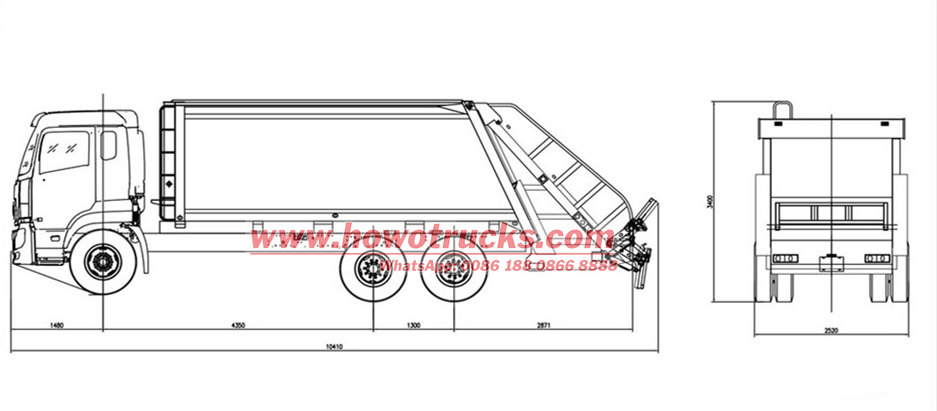

✦Ⅴ.HOWO back loading garbage truck drawing

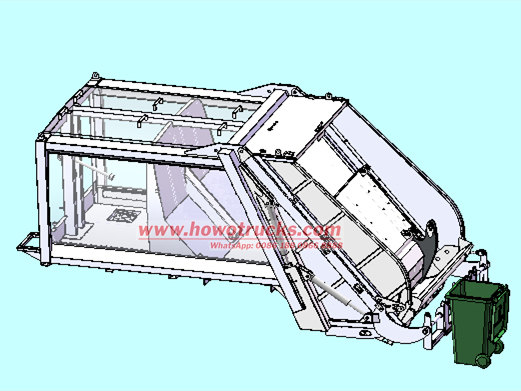

HOWO 6×4 garbage compactor drawing










⇒ Products--100% China HOWO factory trucks!

⇒ Shipping--100% fast,Convenient, Efficient!

⇒ Guarantee--7 days + 24 hours Safety Service!



China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely

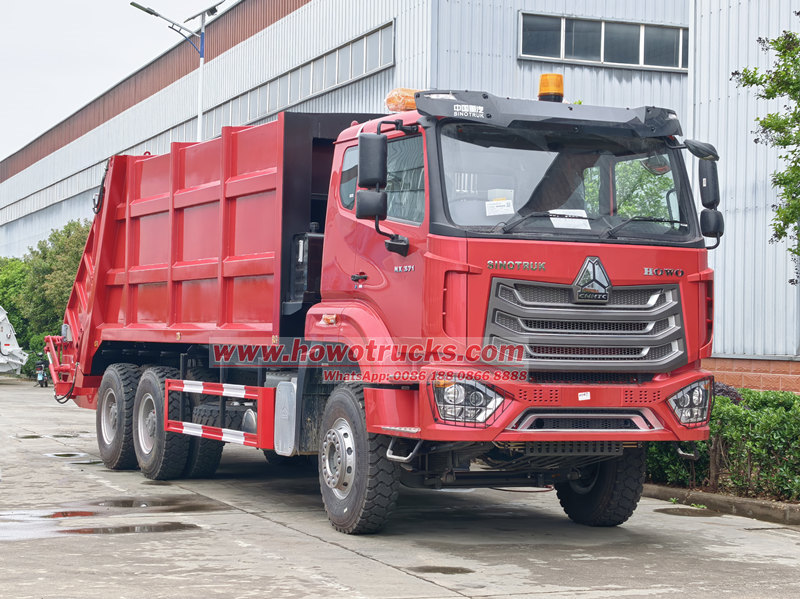

Howo heavy garbage compactor truck

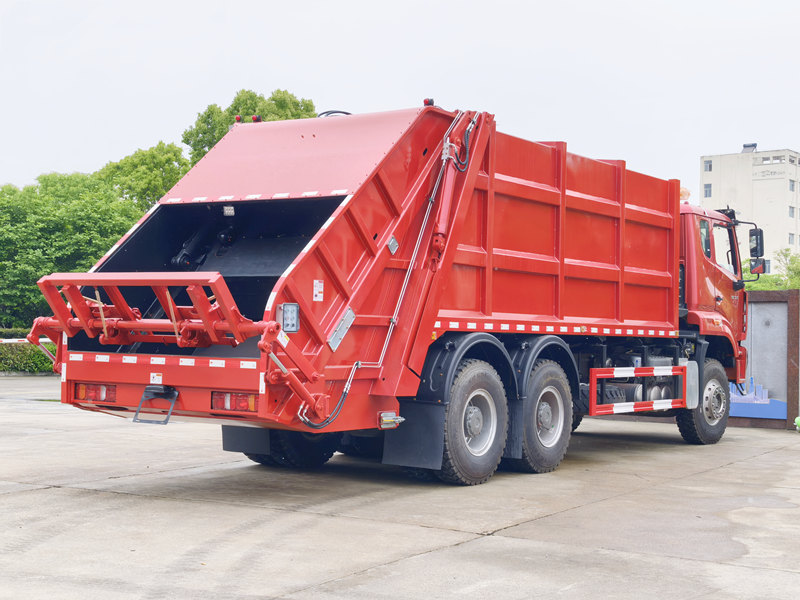

HOWO 6×4 heavy rear loader truck
