HOWO 20 cbm large rear compaction vehicle

The Howo NX 6x4 garbage compactor truck features a 4600mm+1350mm wheelbase, a WD615.47 engine, an HW19710 10-speed transmission, and a 20cbm T420 high-strength steel upper body. It has a non-tipping rear end, folding foot pedals, and a tailgate sealing cover. The vehicle uses Xiamen Yinhua hydraulic cylinders, Yangzhou Xinyun multi-way valves, and Hefei Wanye hydraulic pumps. The loading unit's lifting cylinder has a two-way balance valve, and it employs a CAN bus electronic control system (with one-button operation and manual operation modes, and electronic throttle).

  • ظرفیت کاری :

    20cbm
  • نوع کابین :

    Howo NX one and half row cabin
  • سیستم درایو :

    6x4,LHD
  • فاصله بین دو محور (میلی‌متر) :

    4600+1350 mm
  • مخصوص موتور :

    371 HP / Sinotruk WD615.47
  • جعبه دنده :

    Sinotruk HW19710 10-speed, manual
  • محور جلو (کیلوگرم) :

    9500
  • محور عقب (کیلوگرم) :

    16000*2
محصولات جدید

This HOWO 20 cbm large rear compaction vehicle is a sanitation vehicle designed for heavy-duty sanitation operations. It features a 371-horsepower Sinotruk engine, a large 20-cubic-meter garbage container, and bidirectional compaction technology, resulting in loading efficiency far exceeding that of ordinary vehicles. The entire vehicle utilizes mature and reliable configurations in key components such as power, hydraulics, and electronic control. It employs a CAN-bus electronic control system, offering both one-button automatic and manual operation. The rear sealing and sewage collection systems are also well-designed, ensuring efficient and environmentally friendly operation.

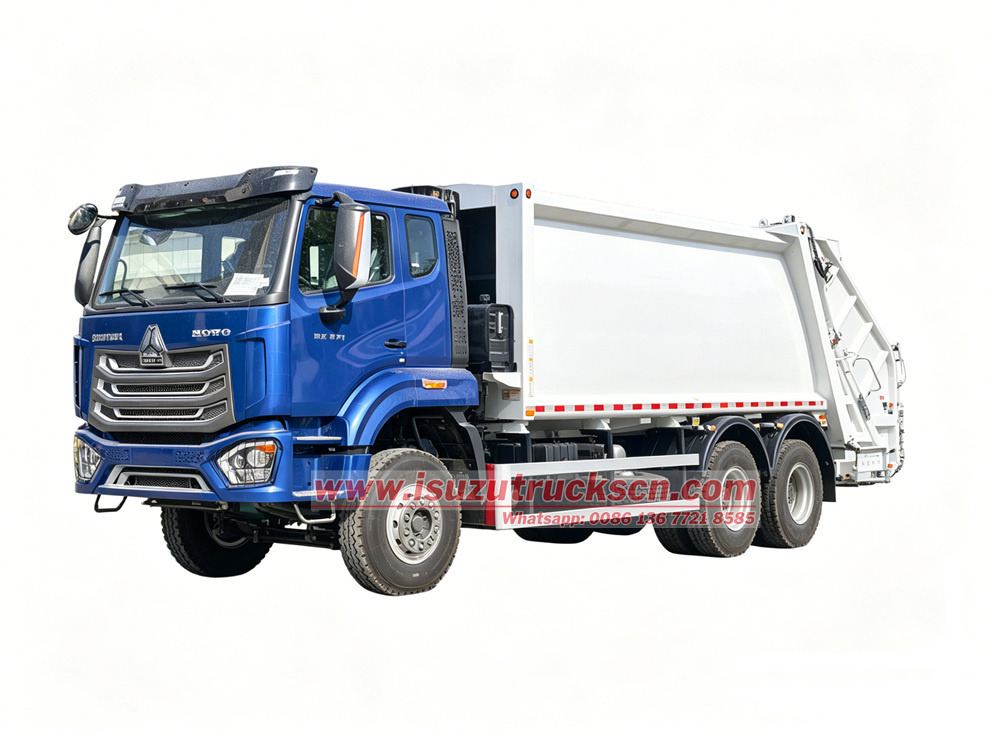

*HOWO 20cbm Large Rear Compaction Vehicle*

-----------------------------------------------------------------

HOWO 20 cbm large rear compaction vehicle

 Product Technological Parameters:

HOWO 6x4 20cbm rear loader compactor truck

Chassis

Dimensions

10720 x 2500 x 3400 (mm)

GVW/Curb Weight

25000/10100kg

Wheelbase

4600+1350mm

Cab

SINOTRUK HOWO NX 6X4, Left Hand Drive

Front/Rear Axle

VGD95 front axle/MCX16ZG dual rear axles

Tire

12.00R22.5, 10+1 tires

Engine

Type

Diesel, In-line 6-cylinder, water-cooled, four-stroke, with exhaust valve brake, direct injection, supercharged intercooling

Make/Model

SINOTRUK / WD615.47

Horse PowerHP)

371 HP/273kW

Max torque

1500N.m

Rated speed

2200rpm

Max torque speed

1100-1600rpm

Fuel tank (L)

400L

Displacement

9.726L

Emission standard

Euro 2

Transmission

Model

SINOTRUK/HW19710, 10F&2R, Manual

Garbage Container

Capacity

20 CBM

Material

T420 High-strength steel plate

Design

Sealed leakage proof

Compaction Ratio

1:3.4

Hopper Volume

2m3

Sewage Tank

200L + 200L

Flip mechanism

Without, direct trash dumping

Loading Time

8~10s

Loading Cycle Time

≤40s

Unloading Time

≤45s

Discharge Type

Rear loading and discharging

Discharging system

Horizontal ejection

Control System

Siemens Automatic CAN systemfeatures both one-button control and manual control modes.

Front electric control in the cab, rear electric control, and drive side manual control

20cbm HOWO NX Trucks Refuse Compactor Chassis:

• Chassis model: HOWO NX371

• Drive configuration: 6×4

• Wheelbase: 4600mm + 1350mm (dual-axle layout, stable load-bearing, suitable for large tanks)

• Engine: Weichai WD615.47 diesel engine

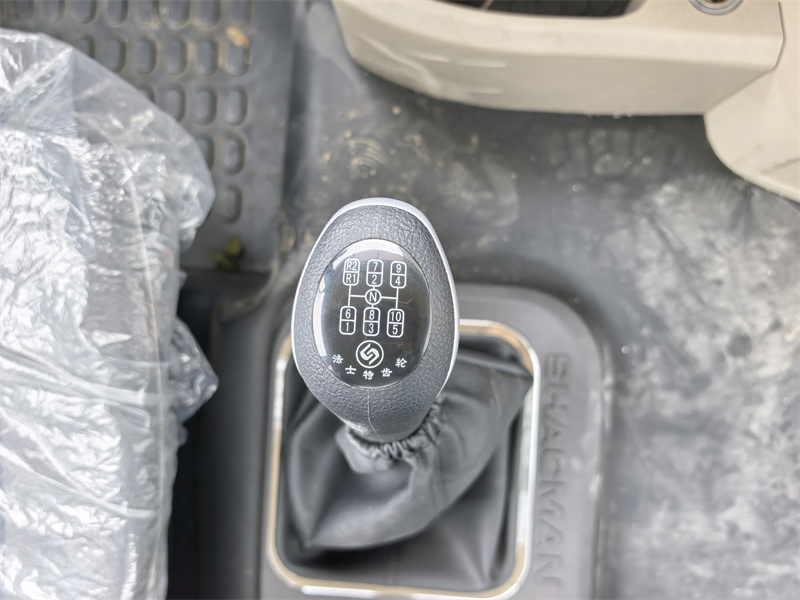

• Transmission: HW19710 series 10-speed manual transmission

• Tire: 12.00R22.5

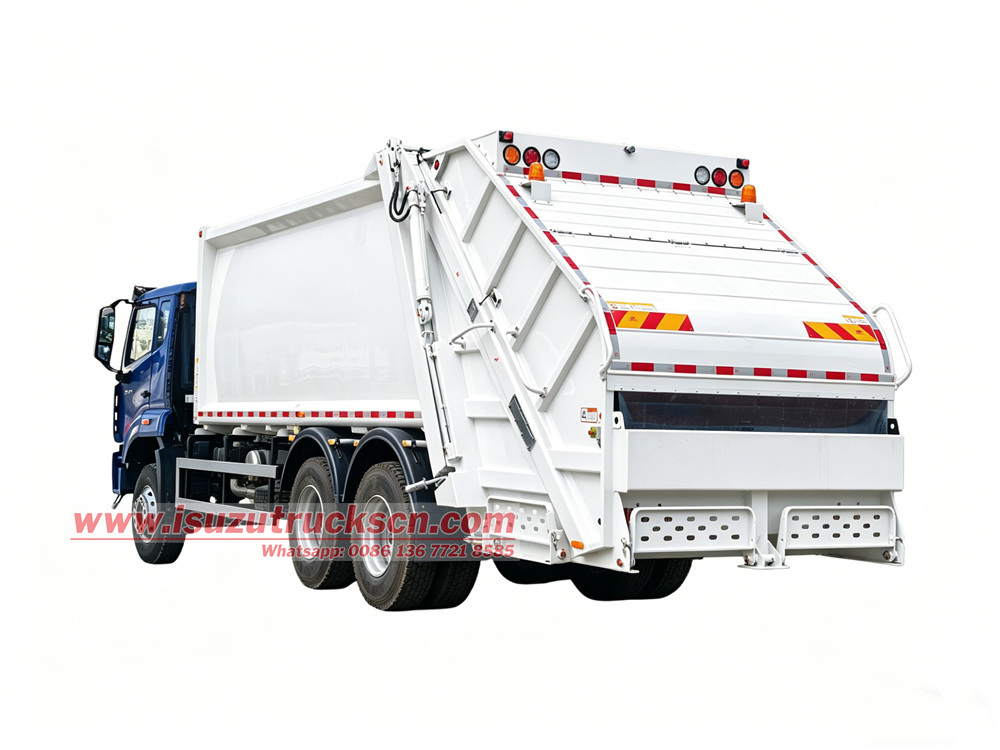

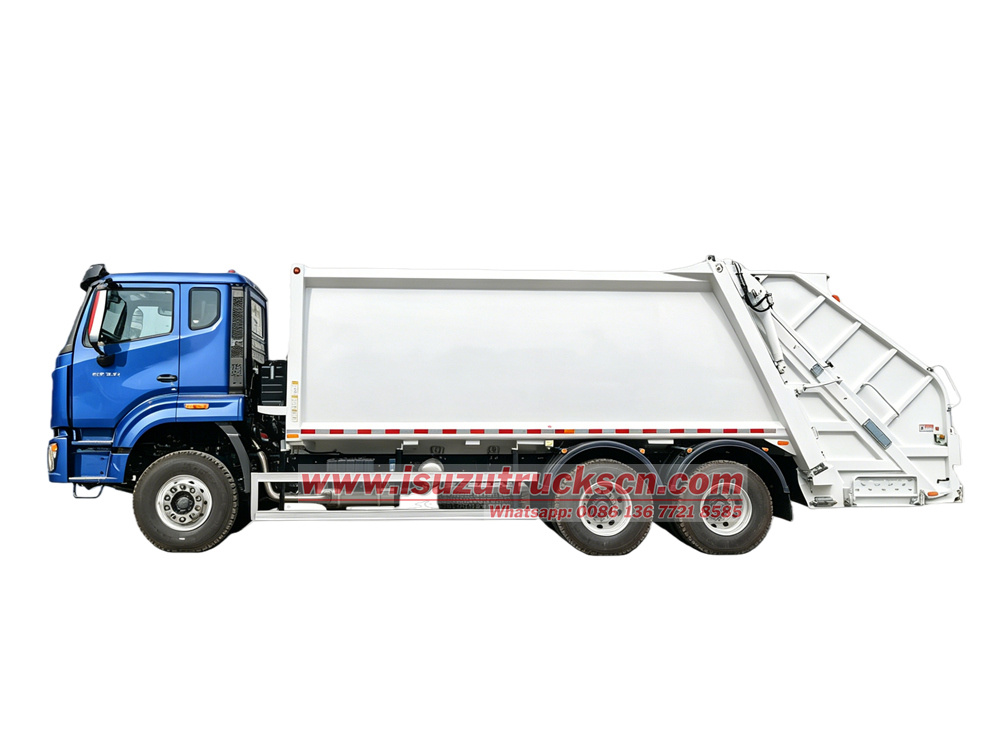

HOWO 6X4 20CBM garbage disposal truck

 Upper Structure Design:

• Container Volume: 20 cubic meters. The container body is made of T420 high-strength steel plate, which is high in strength, wear-resistant, and deformation-resistant.

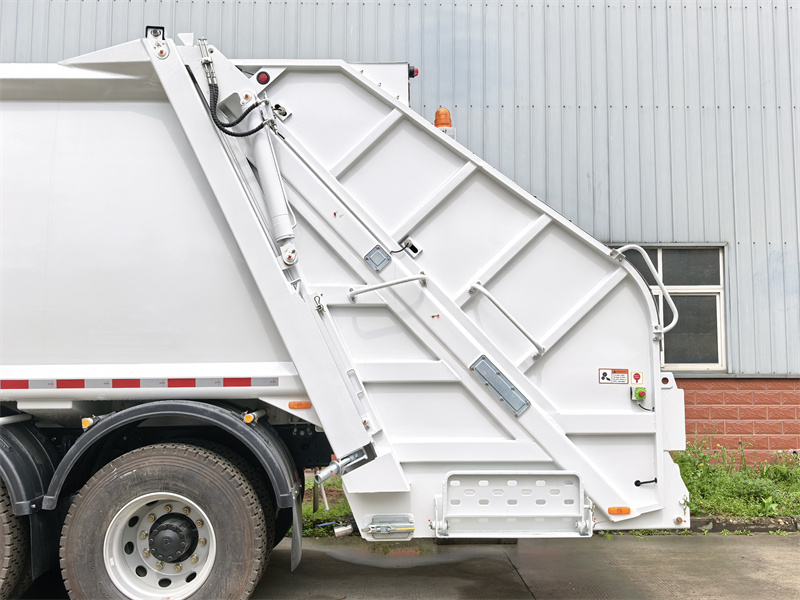

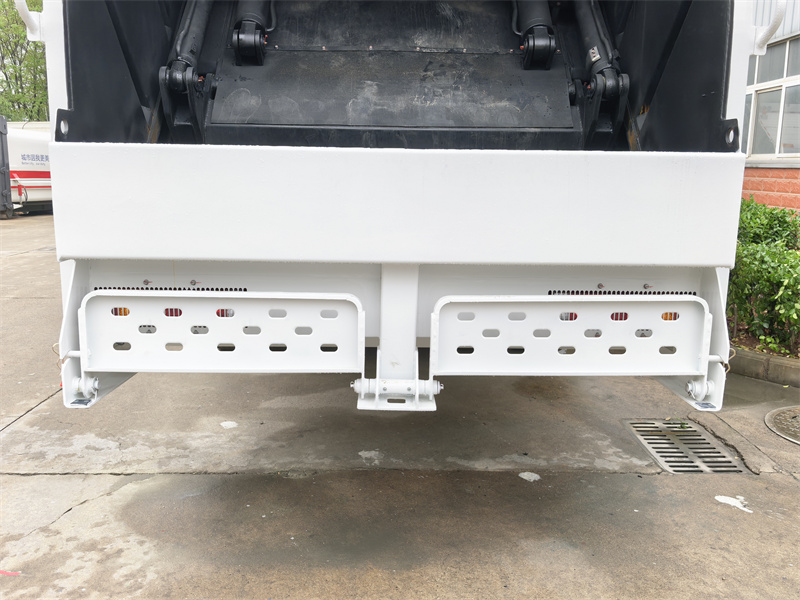

• Rear Design: No tipping mechanism; standard configuration includes a folding foot pedal and a tailgate sealing cover, ensuring a leak-proof seal and facilitating maintenance.



• Two-way Compact Technology: The garbage compaction ratio≥ 1:3.4.Garbage is repeatedly scraped into the garbage container by the scraper blade and undergoes bidirectional compaction in conjunction with the front push plate, causing the garbage to be compacted and pushing the push plate forward until the bin is fully filled.

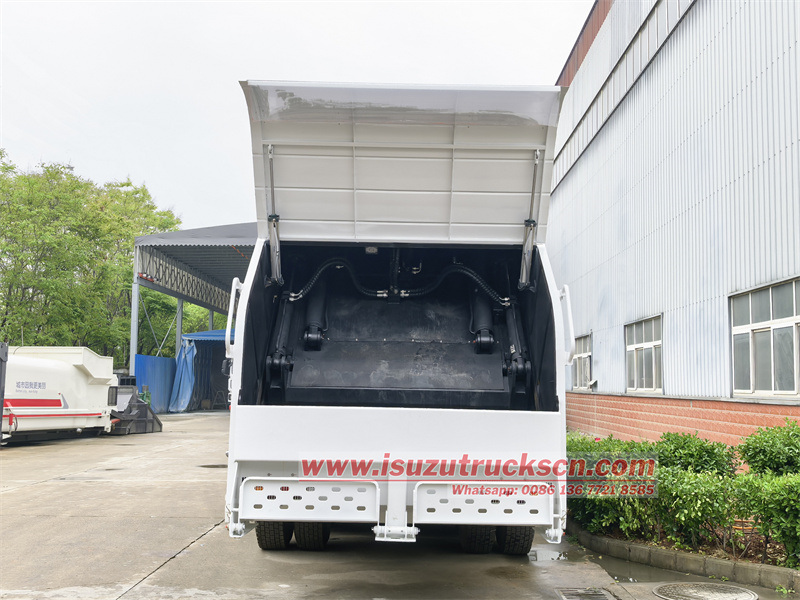

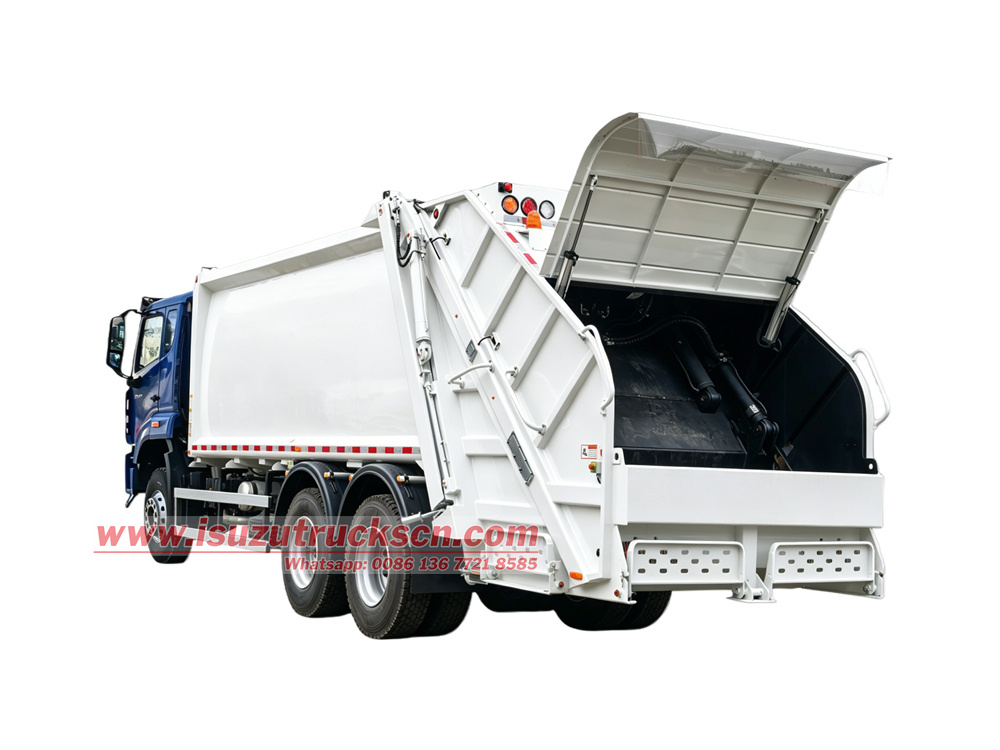

HOWO 6x4 20cbm rear loader compactor truck



 Hydraulic System:

• Lifting Actuation: Employs Xiamen Yinhua hydraulic cylinders; the loading unit lifting cylinder features a two-way balance valve, ensuring smooth, safe, and reliable operation.



• Control Valve: Equipped with Yangzhou Xinyun multi-way valves, providing precise action and rapid response.



• Power Source: Powered by Hefei Wanye hydraulic oil pump, offering stable pressure and strong continuous output capability.

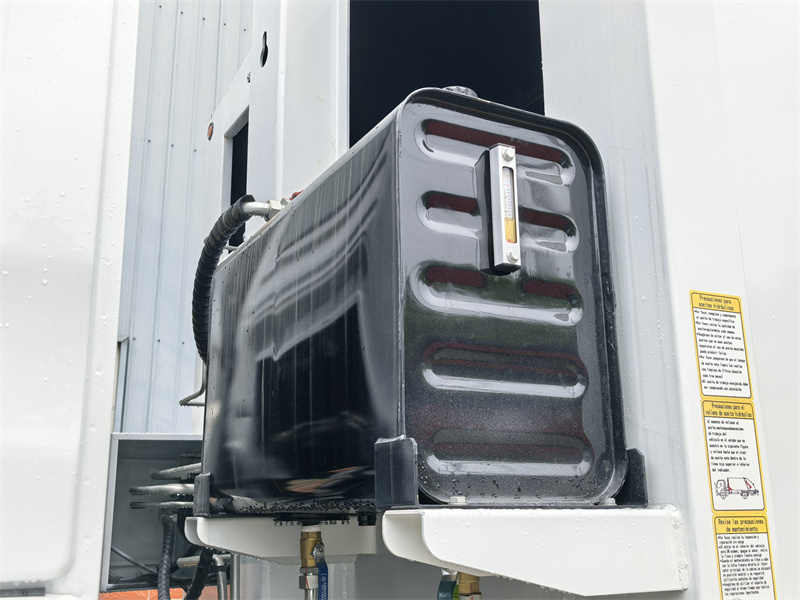

  • Hydraulic oil tank

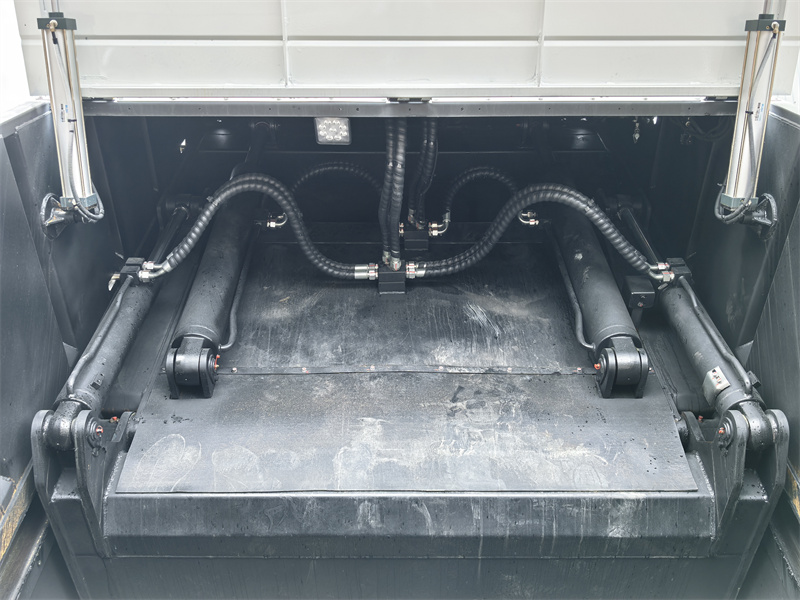

  • Scraper, Sliding plate

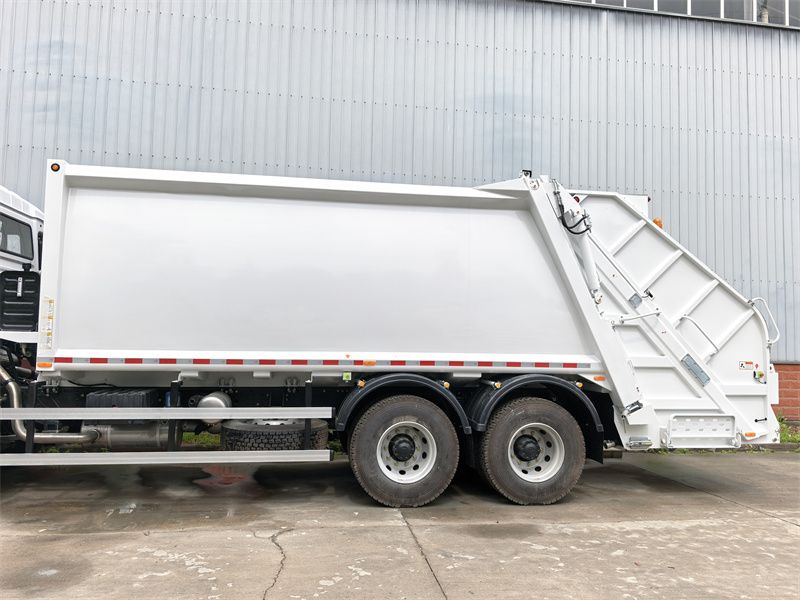

  • Tank and Filler



 Operating System:

The entire vehicle adopts an advanced CAN-BUS bus control system, realizing intelligent and precise control of the garbage loading and unloading process.

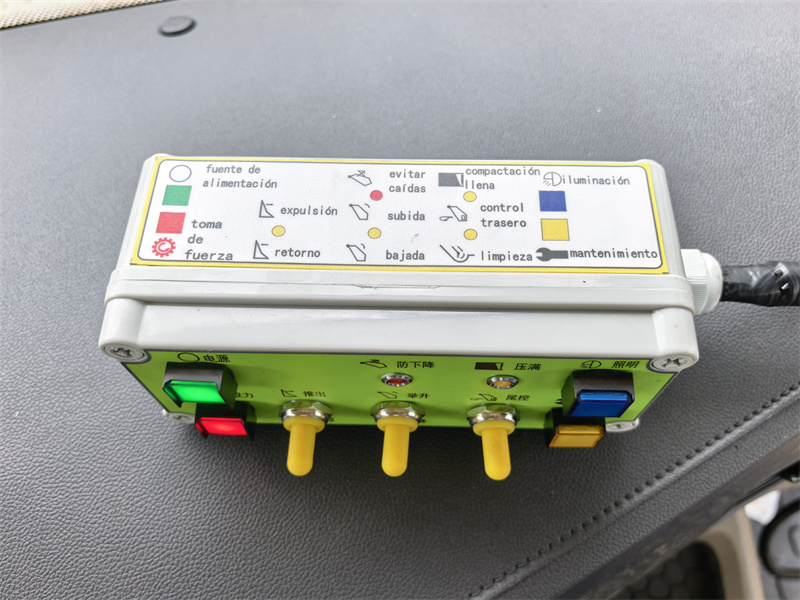

• Cab-mounted electrical control box: power switch, power take-off switch, lights, tailgate anti-lowering indicator light, garbage full warning light, maintenance warning light, loader lifting/lowering, pusher extension/retraction, and cleaning function.



• Passenger-side manual hydraulic control lever: tilting mechanism lifting, pusher extension/retraction.

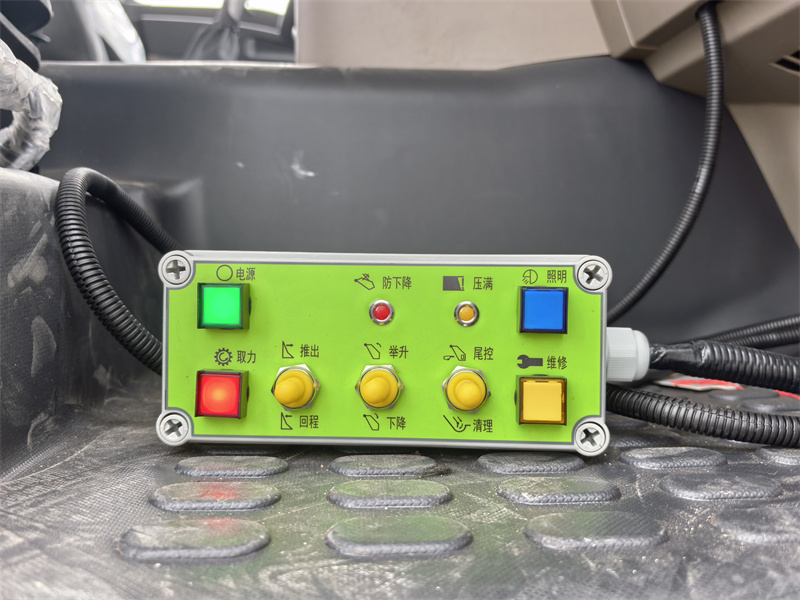

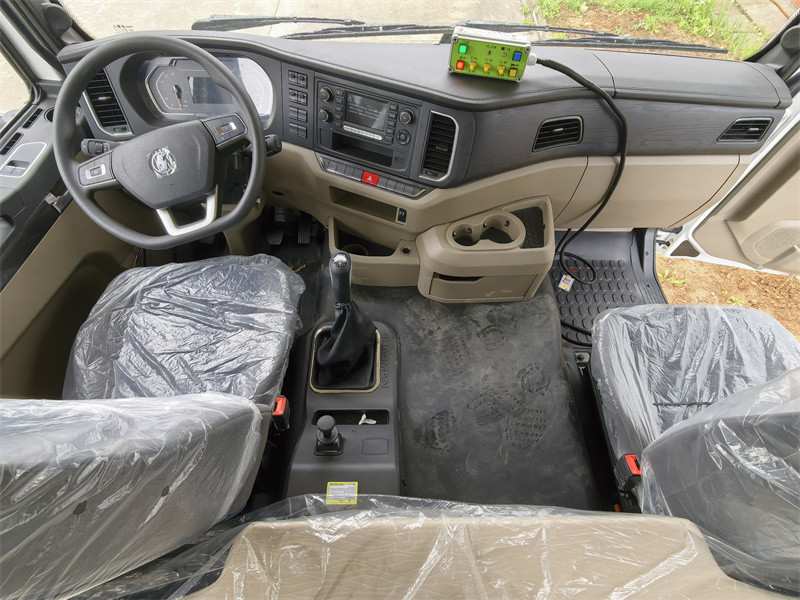

  • cab electric control
    Cab electric control

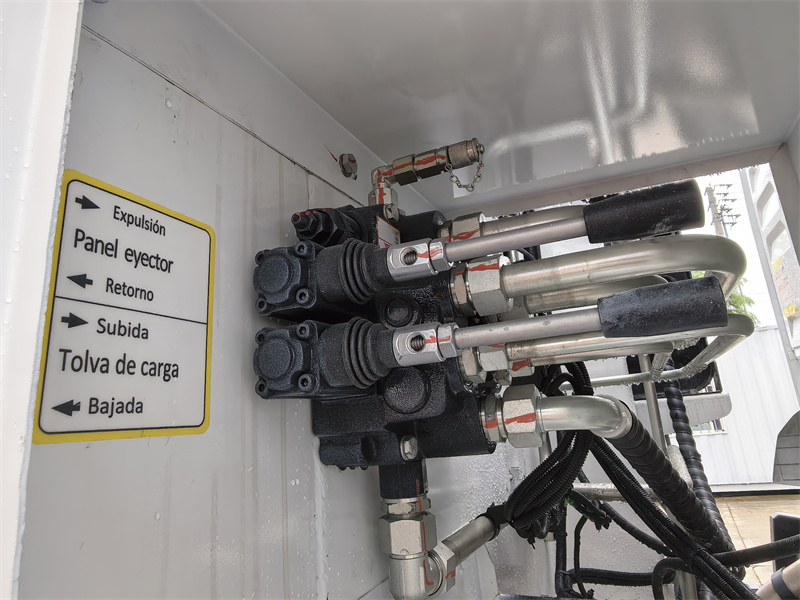

  • Passenger-side manual hydraulic control lever
    Manual hydraulic control lever

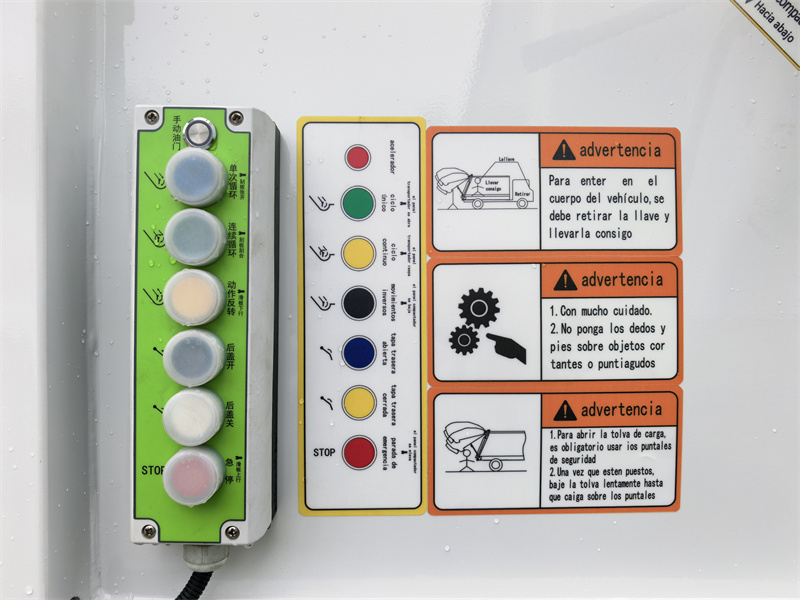

  • Rear electric control
    Rear electric control



• Tailgate electrical control box: single/continuous cycle, reverse operation, rear cover opening/closing, emergency brake, etc.



Tailgate manual operation lever: controls the operation of the sliding plate and scraper.



• Emergency Stop: An emergency stop switch is located on the left side of the loader.
